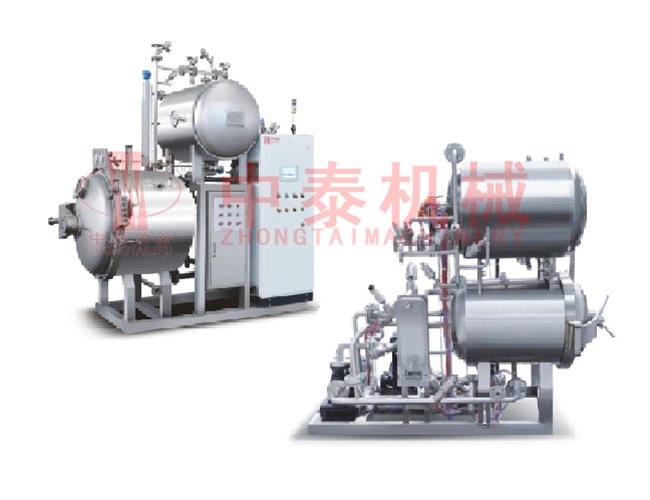

Multipurpose machine
Product Description
1) This machine is designed for the development of new products for laboratory food manufacturers, and is used to formulate sterilization formulas for new products, simulating the sterilization environment in actual production to the maximum extent possible,
2) To test the F0 value for mass production, create product sterilization formulas, and reduce the loss of finished products in experiments,
3) Improve the yield of finished products in mass production,
4) This sterilization kettle is equipped with an electric heating system on the basis of traditional spray sterilization, providing thermal energy for the sterilization process,
5) Eliminating the worry of purchasing boilers, making users worry free and at ease.
6) This machine has multiple sterilization functions, targeting various types of fungicides.
Performance characteristics
1. This machine is designed for the development of new products for laboratory food manufacturers, and is used to formulate sterilization formulas for new products, simulating the sterilization environment in actual production to the maximum extent possible.
2. To test the FO value for mass production, formulate a product killing formula, reduce the loss of finished products in experiments, and improve the yield of finished products in mass production.
3. This sterilization kettle is equipped with an electric heating system on the basis of traditional spray sterilization, providing thermal energy for the sterilization process. Eliminating the worry of purchasing boilers, making users worry free and at ease.
4. This machine has multiple sterilization functions, targeting various types of fungicides.
Technical parameter
Project | Unit | Process tank | Hot water tank | Electric heating tank |
Inner diameter of pot body | mm | 400# | 400# | 200# |
Cylinder length | mm | 500 | 500 | 500 |
Total length | mm | 1800 | 1800 | 1800 |
Total width | mm | 850 | 850 | 850 |
Total height | mm | 1500 | 1500 | 1500 |
Capacity | L | 86 | 86 | 21 |
Total power of equipment | KW | 23.5 | 23.5 | 23.5 |
Electric heating tube power consumption | KW/h | 21 | 21 | 21 |
Design temperature | °C | 145°C | 145°C | 145°C |
Test pressure | Mpa | 0.44Mpa | 0.44Mpa | 0.44Mpa |
Design pressure | Mpa | 0.35Mpa | 0.35Mpa | 0.35Mpa |
Air compressor | 0.36-8 | 0.36-8 | 0.36-8 | |
Water storage tank | m³ | 0.5 | 0.5 | 0.5 |
